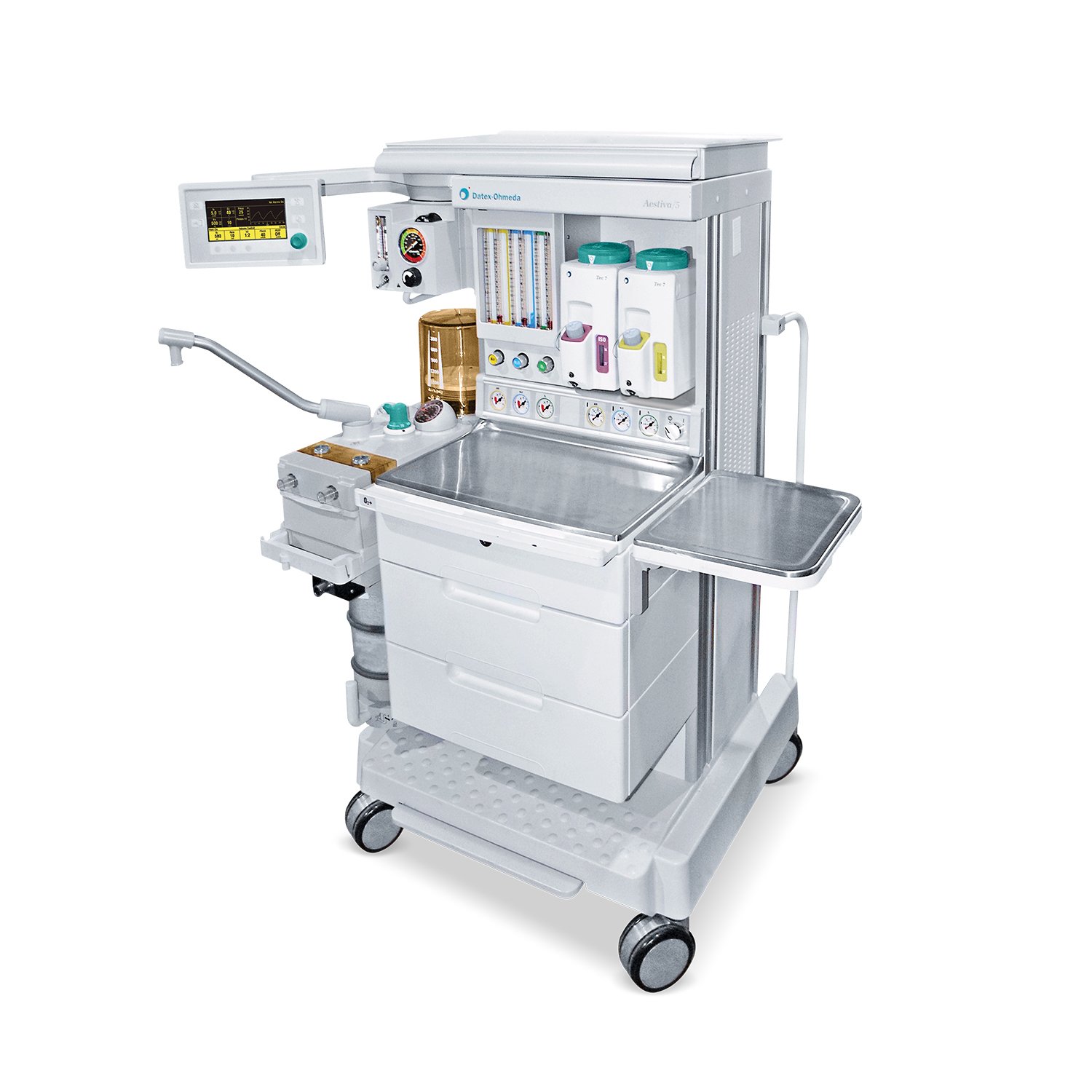

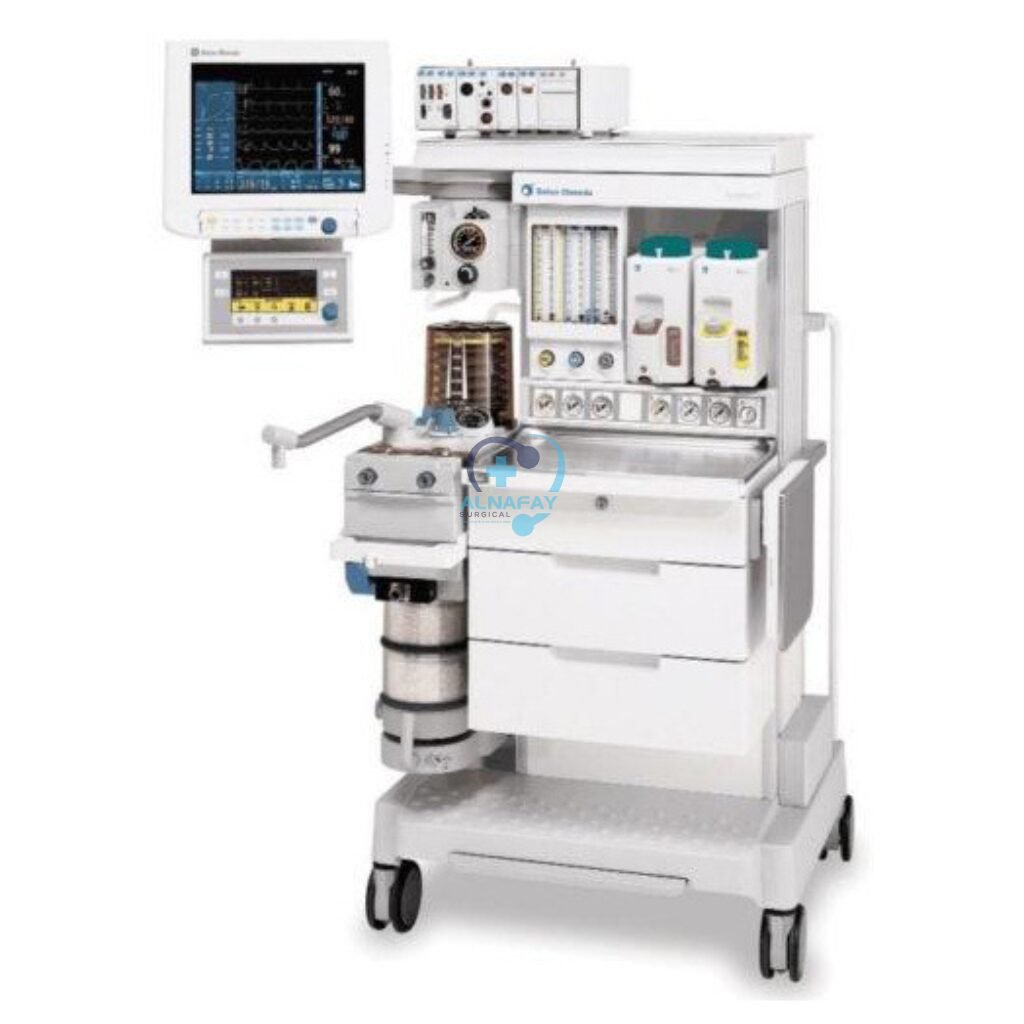

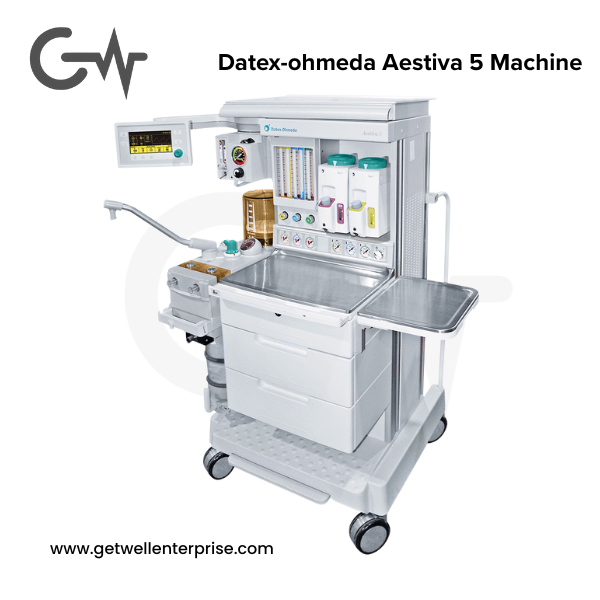

GE Datex Ohmeda Aestiva 5 – Anesthesia Machine

Datex Ohmeda Aestiva 5 – Anesthesia Machine

The GE Datex-Ohmeda Aestiva 5 is a versatile anesthesia system engineered to deliver safety, efficiency, and cost-effectiveness in operating rooms worldwide. Featuring an integrated breathing circuit, SmartVent™ ventilator, and smart sensors, the Aestiva 5 ensures smooth workflows and uninterrupted communication for precise anesthesia delivery.

Key Features

• Integrated Breathing Circuit: Simplifies cable management, improves patient safety, and protects components from disconnection or damage.
• SmartVent™ Ventilator: Provides optimal tidal volume compensation and reliable volume/oxygen monitoring.
• Flexible Configurations: Available with 2 or 3 vaporizer options to meet diverse clinical needs.
• Patient-Centered Engineering: Designed for safety, ease of use, and clinician efficiency.
• Cost-Control Performance: Combines high-quality performance with economical operation.

Ventilation Modes

• Volume Control Mode: With tidal volume compensation for precision.
• Pressure Control Mode: (optional) Adjustable for patient-specific needs.

Ventilation Parameters

• Tidal Volume Range: 45–1500 mL
• Rate: 4–65 breaths per minute
• I:E Ratio: 2:1 to 1:6
• Inspiratory Pause: 5%–60% of inspiratory time
• PEEP: Integrated, electronically controlled (OFF, 4–30 cm H2O)

Monitored Values

• Tidal Volume: 5–1500 mL
• Minute Volume: 0–99.9 L/min
• Breathing Rate: 0–65 BPM
• Oxygen Percentage: 5%–110%
• Airway Pressure: –9 to 99 cm H2O

GE Datex-Ohmeda Aestiva 5 Specifications

• Dimensions (2 Vaporizers): 53.4” H × 29.5” W × 32.7” D; 300 lbs (136 kg)
• Dimensions (3 Vaporizers): 53.4” H × 36.6” W × 32.7” D; 340 lbs (154 kg)
• Work Surface: 34.5” H × 18.5” W × 12.4” D
• Ventilator: 7100 series with SmartVent™ technology
• Electrical: Compatible with standard hospital power systems

Why Choose the GE Datex-Ohmeda Aestiva 5?

The Aestiva 5 anesthesia machine is trusted by hospitals and surgical centers worldwide for its reliability, advanced safety features, and efficiency. With its integrated breathing circuit, smart monitoring, and customizable vaporizer options, it delivers exceptional performance while helping reduce costs and improving patient outcomes.
